Find the right replacement spray gun for your pressure washer

We are pleased to offer a variety of pressure washer trigger guns for electric and gas pressure washers, both for Kärcher and other brands. Free shipping on all orders. If you need additional assistance, please contact our customer service.

Karcher Premium Electric Pressure Washer Cleans Garage Door

Kärcher Bayonet Spray Gun and Hose Kit

Compatible with Kärcher K2 - K5 electric pressure washers (except models with hose reels) and includes a high pressure hose. Please see compatibility chart below. Part number 2.644-343.0

Karcher Electric Pressure Washer Spray Gun Cleans Stone

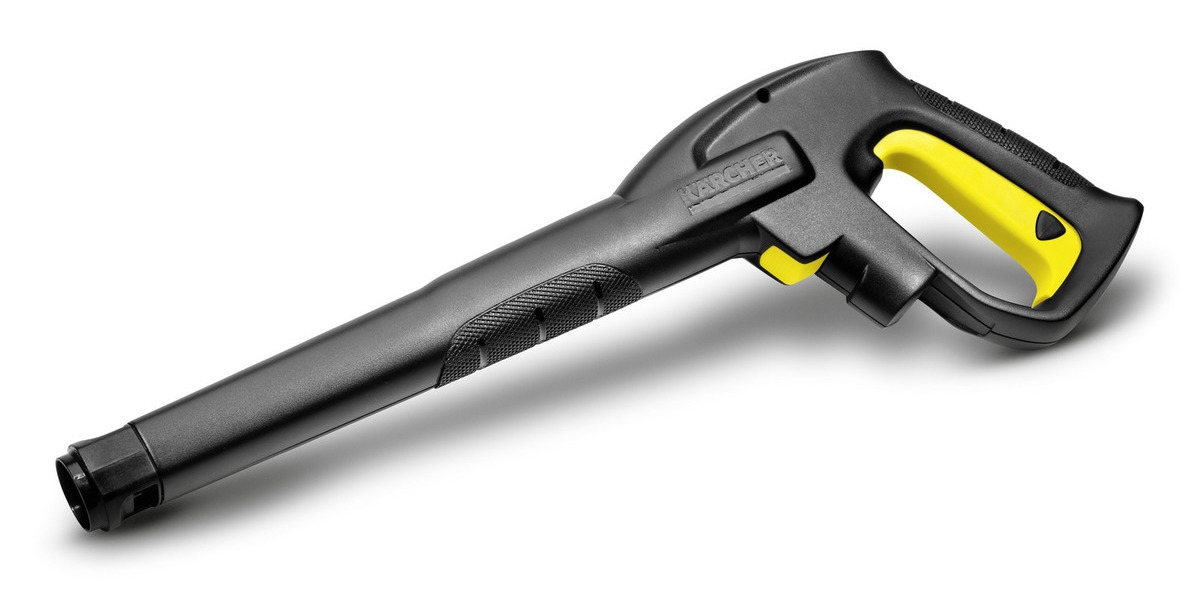

Kärcher Bayonet Spray Gun

Fits most modern Kärcher K2 - K5 electric pressure washers, including those with hose reels. Please see compatibility chart below. Part number 2.642-889.0

VersaGRIP® Spray Gun

Works with Kärcher and other brands of pressure washers that have Quick Connect or M22 connections (up to 4000 psi). Please see compatibility chart below. Part number 8.755-203.0

Karcher G3000 Gas Pressure Washer Cleans Concrete Driveway

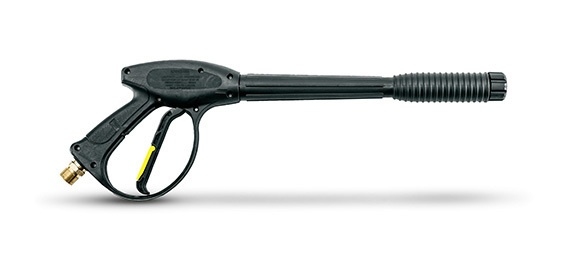

Standard M22 Spray Gun

Compatible with most pressure washers that have M22 connections, up to 4000 psi. See compatibility chart below. Part number 8.641-024.0

Our Spray Gun Models

Pressure Washer Spray Gun Compatibility Charts

Please reference the charts below to determine the right spray gun options for your power washer.

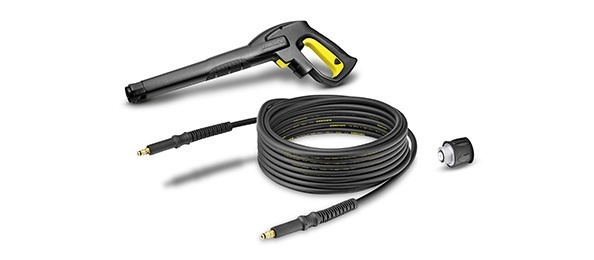

Karcher Bayonet Proprietary Quick Connect Trigger Gun Kit

Pressure washers compatible with the Kärcher Bayonet Spray Gun and Hose Kit (2.644-343.0)

The following Kärcher models are compatible with our Kärcher Bayonet Trigger Gun and Hose Kit:

Model	Model	Model	Model	Model	Model	Model
K 2	K 2.20	K 2.38 M CCK	K 2.97	K 3.49 M	K 3.81 M	K 5
K 2 CCK	K 2.21	K 2.40	K 2.97 K 12	K 3.540	K 3.86 M	K 5.20 M
K 2 CHK	K 2.25	K 2.425	K 3	K 3.60 M	K 3.91 M	K 5.65 QC
K 2 Compact	K 2.26 M	K 2.45	K 3 Follow Me	K 3.65	K 3.92 M
K 2 Ergo	K 2.27	K 2.54 M	K 3.000 Follow Me	K 3.67 M	K 3.95 M
K 2 Plus	K 2.27 CCK	K 2.55	K 3.350	K 3.68 M
K 2.050	K 2.28	K 2.56 M	K 3.450	K 3.69 M	K 3.97 M VPS
K 2.150	K 2.29	K 2.90	K 3.450 T200 CCK	K 3.740	K 3.98 M
K 2.16	K 2.350	K 2.900 MO	K 3.47 M	K 3.78	K 330 M
K 2.19	K 2.360 CCK	K 2.93	K 3.48 M	K 3.79 M	K 4

NOTE: Kärcher Bayonet Trigger Guns are NOT COMPATIBLE WITH OTHER BRANDS of pressure washers.

Pressure washers compatible with the Kärcher Bayonet Spray Gun (2.642-889.0)

The following Kärcher models are compatible with our Bayonet Trigger Gun:

Model	Model	Model	Model	Model	Model	Model
K 2	K 2.20*	K 2.38 M CCK*	K 2.97*	K 3.49 M*	K 3.79 M*	K 4 Premium
K 2 CCK	K 2.21*	K 2.40*	K 2.97 K 12*	K 3.540*	K 3.81 M*	K 5
K 2 CHK	K 2.25*	K 2.425*	K 3	K 3.60 M*	K 3.86 M*	K 5 Premium
K 2 Compact	K 2.26 M*	K 2.45*	K 3 Follow Me	K 3.65*	K 3.91 M*	K 5.20 M*
K 2 Ergo	K 2.27*	K 2.54 M*	K 3.000 Follow Me	K 3.67 M*	K 3.92 M*	K 5.540*
K 2 Plus	K 2.27 CCK*	K 2.55*	K 3.350*	K 3.68 M*	K 3.95 M*	K 5.65 QC*
K 2.050*	K 2.28*	K 2.56 M*	K 3.450*	K 3.69 M*	K 3.96 M*	K 5.68*
K 2.150*	K 2.29*	K 2.90*	K 3.450 T200 CCK*	K 3.690*	K 3.97 M*	K 5.690*
K 2.16*	K 2.350*	K 2.900 MO*	K 3.47 M*	K 3.740*	K 3.98 M*	K 5.720*
K 2.19*	K 2.360 CCK*	K 2.93*	K 3.48 M*	K 3.78*	K 4	K 5.740*
						K 5.85 M

*Early versions of these models may have had an older "C-Clip" style spray gun. If you are not sure whether your model had the "C-Clip" or "Kärcher Quick Connect" type gun, we recommend you purchase the Trigger Gun and Hose Kit (part number 2.643-910.0) instead.

NOTE: Kärcher Bayonet Trigger Guns are NOT COMPATIBLE WITH OTHER BRANDS of pressure washers.

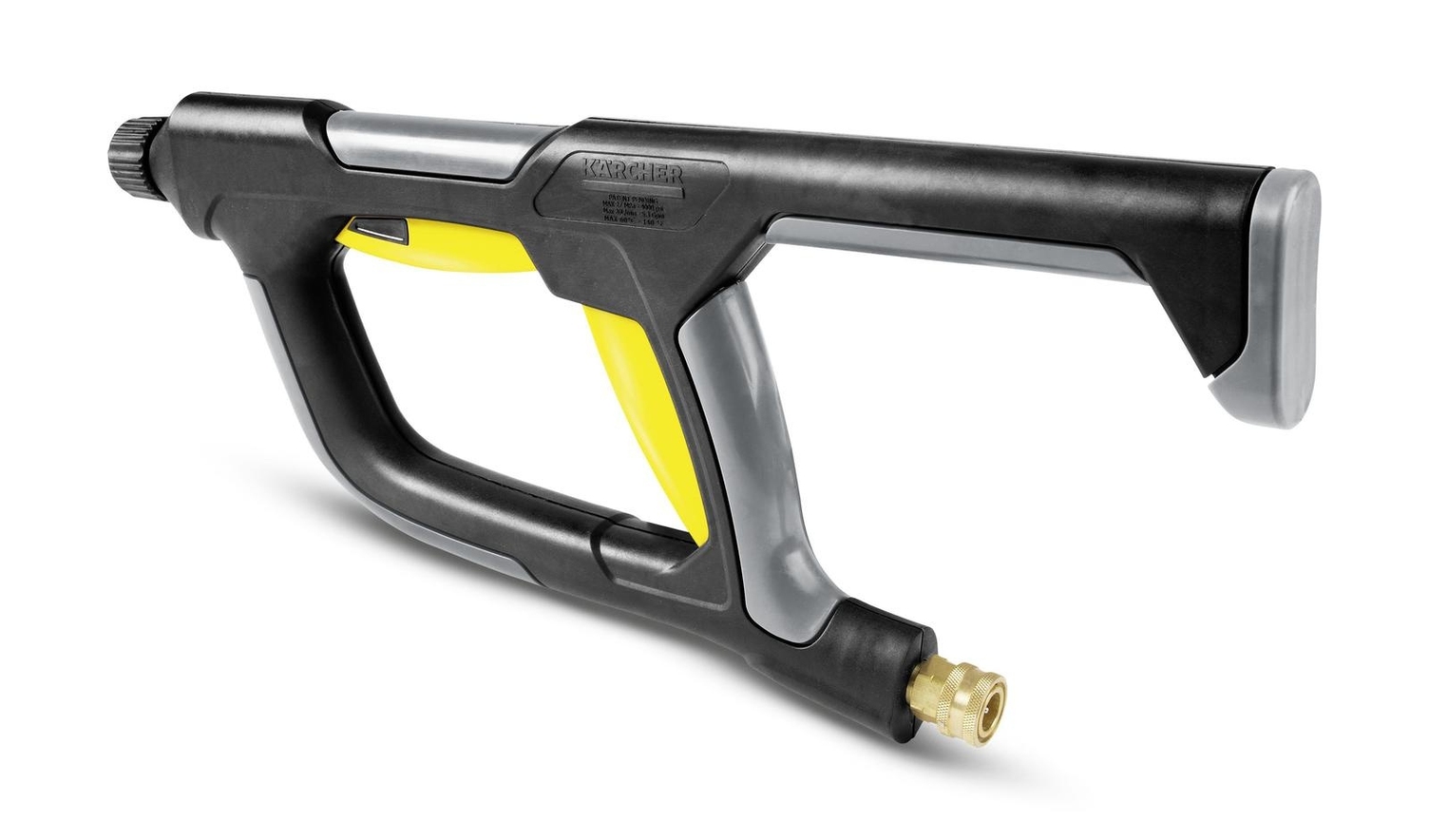

Karcher VersaGRIP Trigger Gun Product Image

Pressure washers compatible with the Kärcher VersaGRIP Spray Gun (8.755-203.0)

The VersaGRIP is compatible with the following models:

Model	Model	Model	Model	Model	Model
G 1800 LB	G 2500 DH	G 2600 PH	G 2800 FC	G 3000 X	G 3200 XH
G 2000 ET	G 2500 HT	G 2600 VC	G 2800 FCE	G 3000 XK	G 3200 XK
G 2000 MK	G 2500 LH	G 2600 VH	G 2800 FH	G 3025 BH	G 3500 OCT
G 2000 QT	G 2500 OH	G 2600 XC	G 2800 OC	G 3025 OH	G 3500 OHT
G 2300 IB	G 2500 PH	G 2600 XH	G 2800 OH	G 3050 OH	G 3800 OHT
G 2300 LB	G 2500 VH	G 2650 HH	G 2800 XC	G 3050 OHC	G 4000 OH
G 2301 LT	G 2600 FC	G 2650 OH	G 2800 XH	G 3100 XH	G 4000 RH
G 2400 HH	G 2600 FCE	G 2700	G 2900 X	G 3200 OC	G 4000 SH
G 2401 OH	G 2600 FH	G 2700 DC	G 3000	G 3200 OCT	G 4001 RH
G 2401 OT	G 2600 OH	G 2700 DCE	G 3000 BH	G 3200 OH	K 1900 / K 1910
G 2500 DC	G 2600 OR	G 2700 DH	G 3000 K	G 3200 X	K 2000 / K 2010
G 2500 DCE	G 2600 PC	G 2700 R	G 3000 OH	G 3200 XC	Other brands of pressure washers1

1Must have either Quick Connect or M22 connections and be rated 4,000 psi or less.

Pressure washers compatible with the Kärcher Standard M22 Spray Gun (8.641-024.0)

Our Standard M22 Spray Gun is compatible with the following models:

Model	Model	Model	Model
G 1800 LB	G 2500 HT	G 2600 VC	G 3050 OH
G 2000 ET	G 2500 LH	G 2650 HH	G 3050 OHC
G 2000 MK	G 2500 OH	G 2650 OH	G 4000 OH (without triplex pump)
G 2000 QT	G 2500 PH	G 2700	G 4000 RH
G 2300 IB	G 2500 VH	G 3000	G 4000 SH
G 2300 LB	G 2600 OH	G 3000 BH	G 4001 RH
G 2301 LT	G 2600 OR	G 3000 K	K 1900 / K 1910
G 2400 HH	G 2600 PC	G 3000 OH	K 2000 / K 2010
G 2401 OH	G 2600 PH	G 3025 BH	Other brands of pressure washers2
G 2401 OT	G 2600 VC	G 3025 OH

2Must have M22 connections and be rated 4,000 psi or less.

Frequently Asked Questions

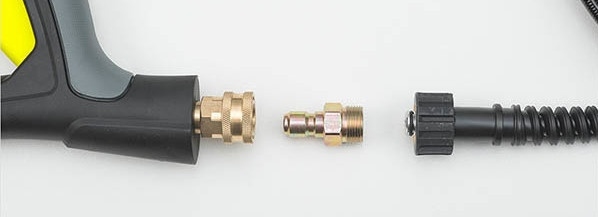

How can the VersaGRIP be compatible with both Quick Connect and M22?

Are the M22 connections on the VersaGRIP and Standard Trigger Gun male or female?

Do you attach spray nozzles directly on the end of the VersaGRIP or Standard Trigger Gun?

No

You need to attach a spray wand to the trigger gun, then attach the nozzles to the spray wand. The sequence is:

Spray Gun -> Spray Wand -> Spray Nozzle

So you can't directly connect a nozzle to the gun. A spray wand has to be in the middle.

You should already have a spray wand that came with your pressure washer, but check to be sure. If not, you can also order a 24" stainless steel spray wand here.

NOTE: some accessories like brushes do attach directly to the trigger gun, but not nozzles.

Why is my Karcher pressure washer listed as compatible with two different spray guns? How do I choose?

For many of our gas pressure washers (and our K1900/K2000 electric models), you have two options of spray guns – the VersaGRIP or the Standard trigger gun.

The VersaGRIP delivers a better spraying experience, with dual handles, large grips and a shoulder stock. The Standard Trigger Gun is a solid economical choice at an entry-level price point.

For many of our electric pressure washers, you can choose either the Kärcher Bayonet Trigger Gun by itself, or in a kit with a high pressure hose and adapter. Due to the larger quantities of the kit we purchase, you might find it a good investment so that you also get a new high pressure hose as well – and at a price much less than if you had bought the trigger gun and hose separately.

I don't see my older Kärcher pressure washer model listed. How can I figure out which trigger gun is right for it?

Contact us.

If you don't see your Kärcher pressure washer model listed above, you'll need to contact us so that we can look it up.

The easiest way to reach us is at karcher-help.com (click to 'submit a ticket') – enter your model name and your email address and we'll research it and get back to your promptly. Or you can also call our customer care line at 800-537-4129. Both services are offered free to Kärcher customers in the US and Canada.

I lost my pressure washer gun, will the VersaGRIP fit my XYZ brand pressure washer?

Do I need a gun lance or washer wand to use with these trigger guns?

In most cases, yes.

For the VersaGRIP and Standard Trigger Gun, you will need to first attach a spray wand. The nozzles then connect to the wand. Here's the sequence:

VersaGRIP -> Spray wand -> Spray nozzle
Standard Trigger Gun -> Spray wand -> Spray nozzle

For the Trigger Gun and Hose Kit, you will need to attach either a Kärcher Vario Spray Wand or Kärcher Dirtblaster Wand. Here's the sequence:

Trigger Gun -> Vario Spray Wand
Trigger Gun -> Dirtblaster Spray Wand

(Note: the Vario and Dirtblaster wands have a nozzle inside them, so you don't need separate wands and nozzles – you just need the Vario or Dirtblaster wand)

If you need to also buy a spray wand/lance or nozzles, please scroll below on this page for links to those items.

Are pressure washer trigger guns and "spray guns" the same thing?

Can these pressure washer spray guns be used with hot water?

Where can I buy Karcher pressure washer trigger guns?

What are the Karcher part numbers for each spray gun?

The unique and fatigue-fighting VersaGRIP® Trigger Gun

Our patented VersaGRIP has two triggers instead of one – allowing you to pressure wash from a variety of angles. From difficult to reach areas down low to overhead areas with odd angles, the VersaGRIP has you covered. It's large overmolded grips also help fight fatigue and ensure a good grip, even when wet. Up your pressure washing game today with the power of our VersaGRIP Trigger Gun!

Related Accessories

Spray wands for your Kärcher Bayonet Trigger Guns

Need a replacement Vario Power Spray and Dirtblaster® wand as well? They connect directly to our Kärcher Bayonet Trigger Gun to ensure you have the optimum tools for your Kärcher electric pressure washers. (NOTE: these are NOT compatible with other brands of pressure washers)

Do you also need a spray wand / spray lance and nozzles for your VersaGRIP or M22 Trigger Gun?

We are pleased to offer a 24" stainless steel spray wand and set of five spray nozzles to complement our VersaGRIP and Standard Trigger Guns.

Even more accessories

We also offer a complete range of pressure washer hoses and surface cleaners. If you own a Kärcher pressure washer, you can also use our powerful accessory finder.
