Industrial vacuum IVM 40/24-2 H ACD
Features and benefits
ACD – Applied for Combustible Dust
For the safe and economical vacuuming of combustible dusts. Conforms to the IEC 60335-2-69 standard.
Dust class H
Overall device certified according to DIN EN 60335-2-69 for dust class H. For safely picking up solids and dusts up to dust class H.

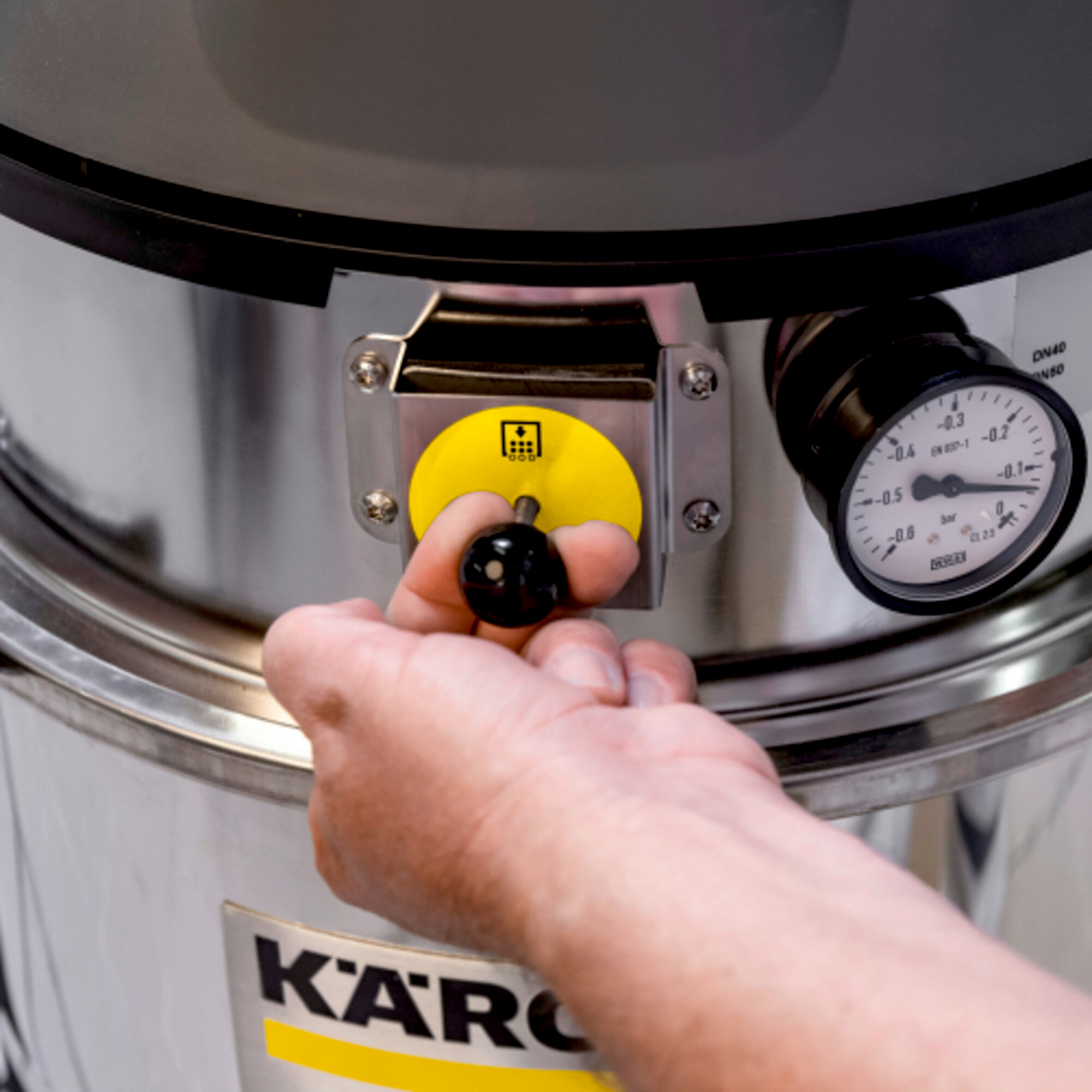

Manual pull-and-clean filter cleaning
Filter is cleaned in a single step during operation. Low-wear dedusting by means of air reversal.Fitted with two blower motors
- For powerful suction power and optimum cleaning performance.
- Fans can be switched on separately for individual suction power as required.
Specifications
Technical data
| Number of current phases (Ph) | 1 |
| Voltage (V) | 220 / 240 |
| Frequency (Hz) | 50 / 60 |
| Air flow (l/s) | 106 |
| Vacuum (mbar) | 225 |
| Container capacity (l) | 40 |
| Container material | Stainless steel |
| Rated input power (kW) | 2.3 |
| Vacuuming type | Electric |
| Nominal size | ID 70 |
| Accessory nominal size | ID 50 ID 40 |
| Sound pressure level (dB(A)) | 77 |
| Main filter dust class | M |
| Filter area for main filter (m²) | 1.6 |
| Secondary filter dust class | H |
| Filter area for secondary filter (m²) | 1.6 |
| Weight without accessories (kg) | 36 |
| Weight incl. packaging (kg) | 40 |
| Dimensions (L × W × H) (mm) | 645 x 655 x 1150 |
Equipment
- Main filter: Star filter
- Secondary filter: Cartridge filter
- Accessories included with machine: no
Videos
Application areas
- For picking up combustible types of dust
