HDS 6/12 C Setup Guide & Important Information
Please do all of the following to complete your HDS 6/12 C handover training:
- Read through all contents on the page.
- Watch the training video in it's entirety.
Step 1
Ensure the two supplied QR code stickers are attached to the front of the machine.
Scan the 'installation & operator handover' QR code (as below) or use this link: kaercher.com/au/hds6-12chandover.html
Step 2

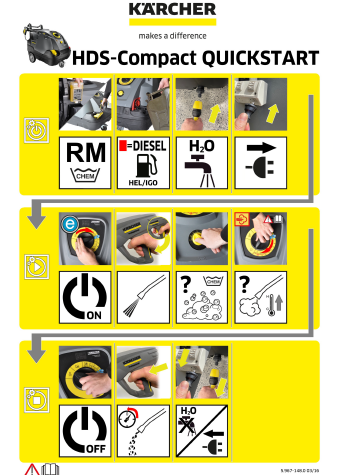

Download and read the quickstart guide below:
Step 3 - Watch training video
Please watch full training video prior to using the machine.
You can also quickly find and rewatch specific sections of the video using the links below.
Further Information

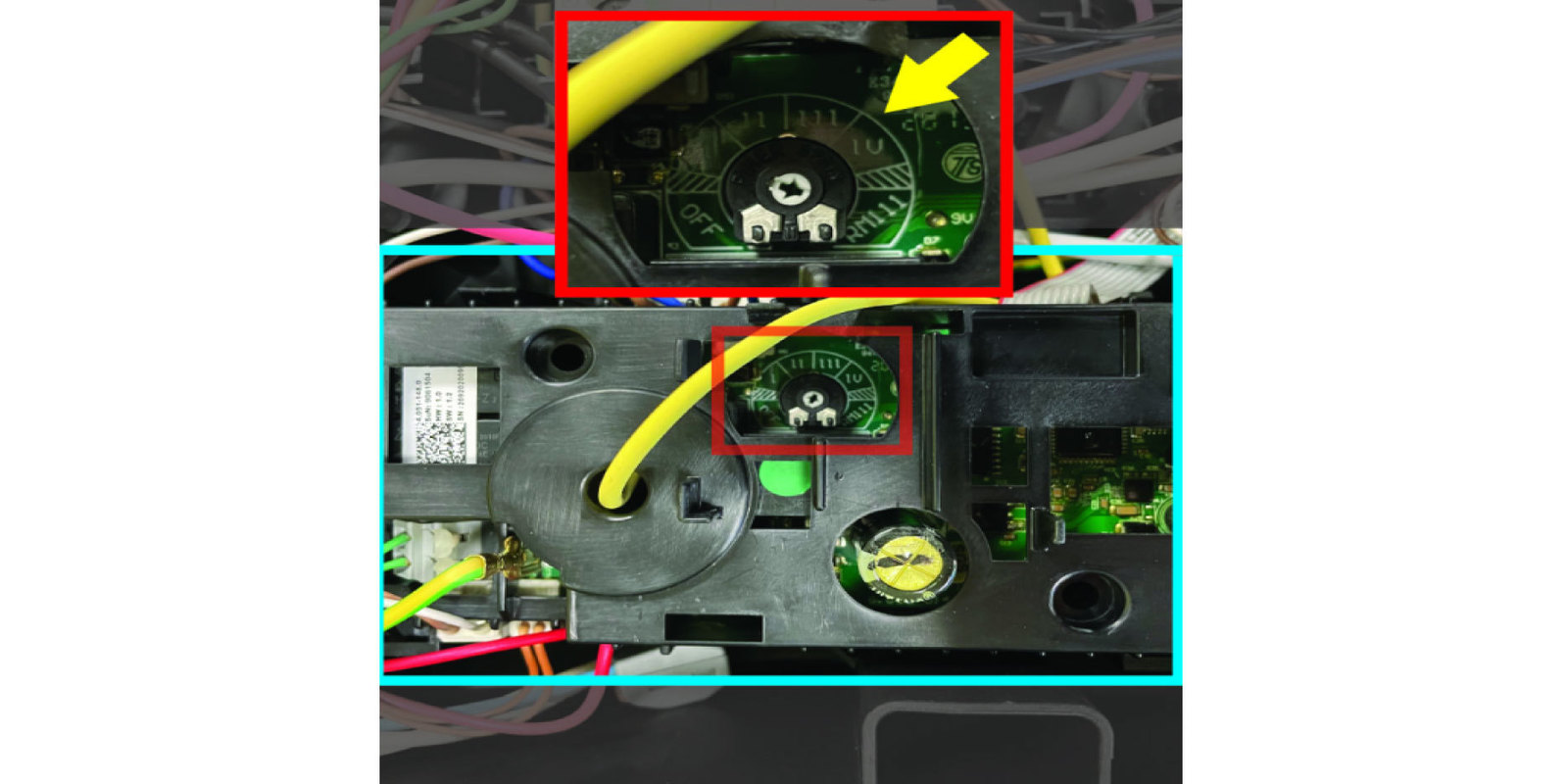

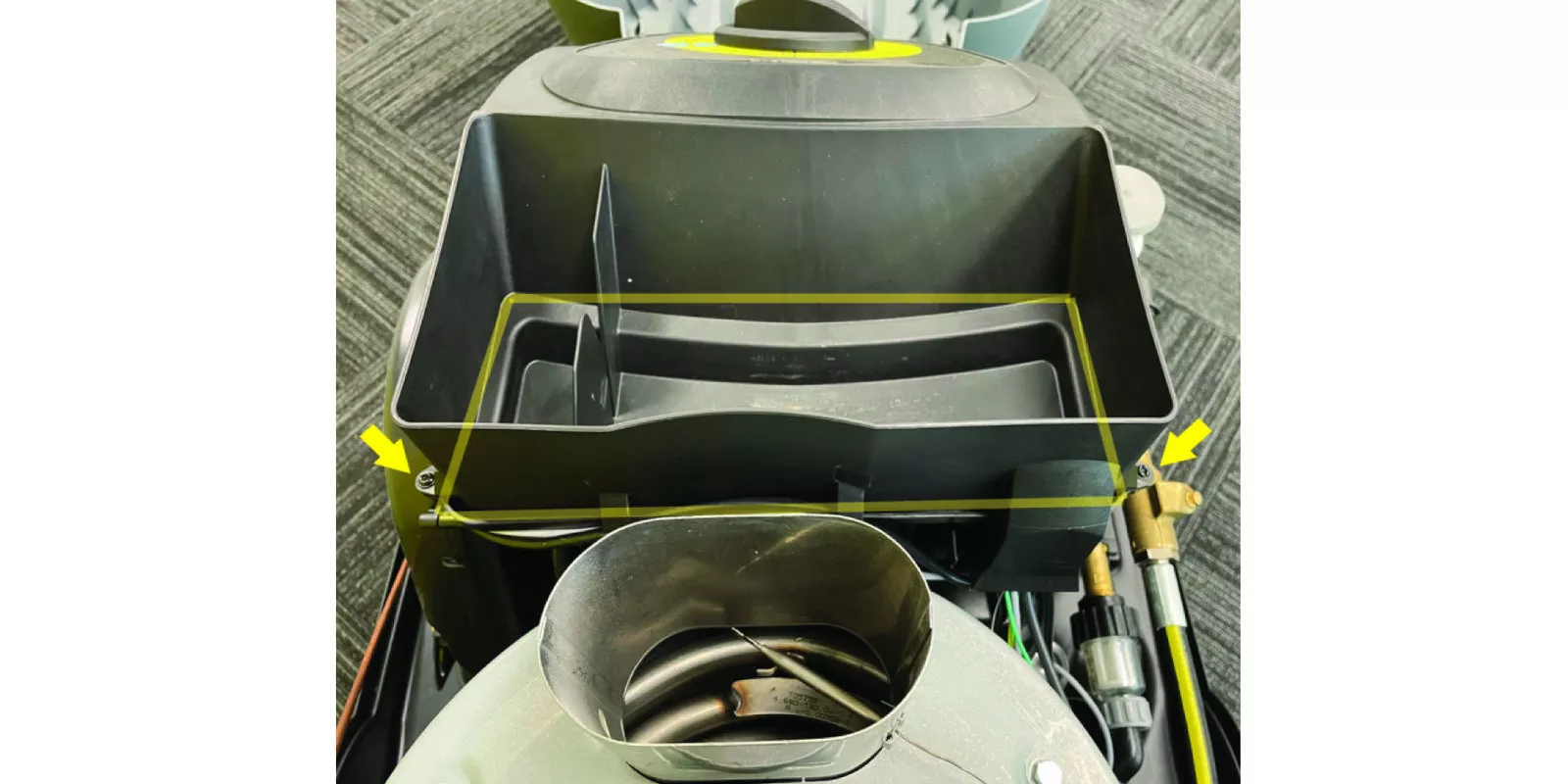

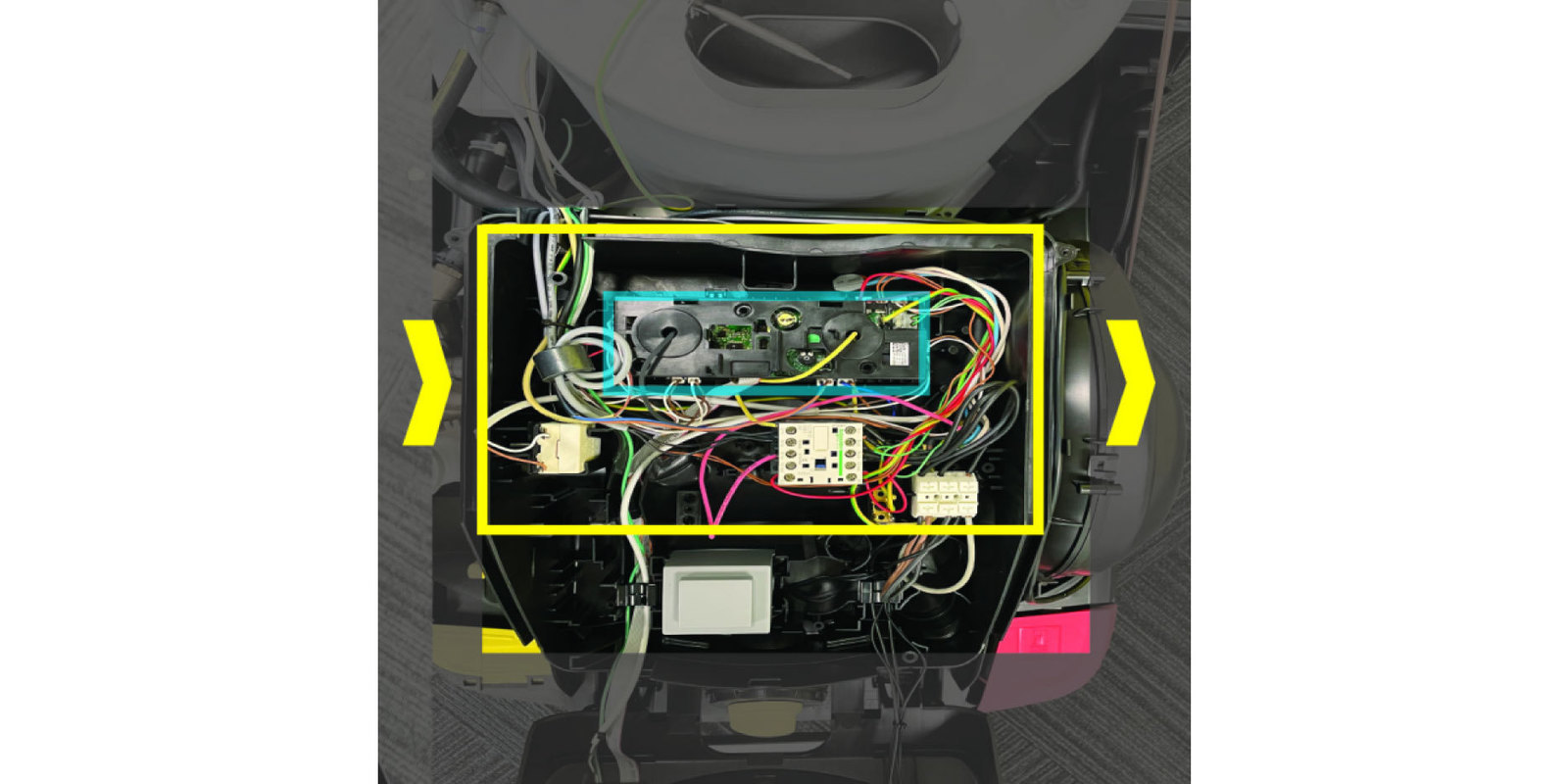

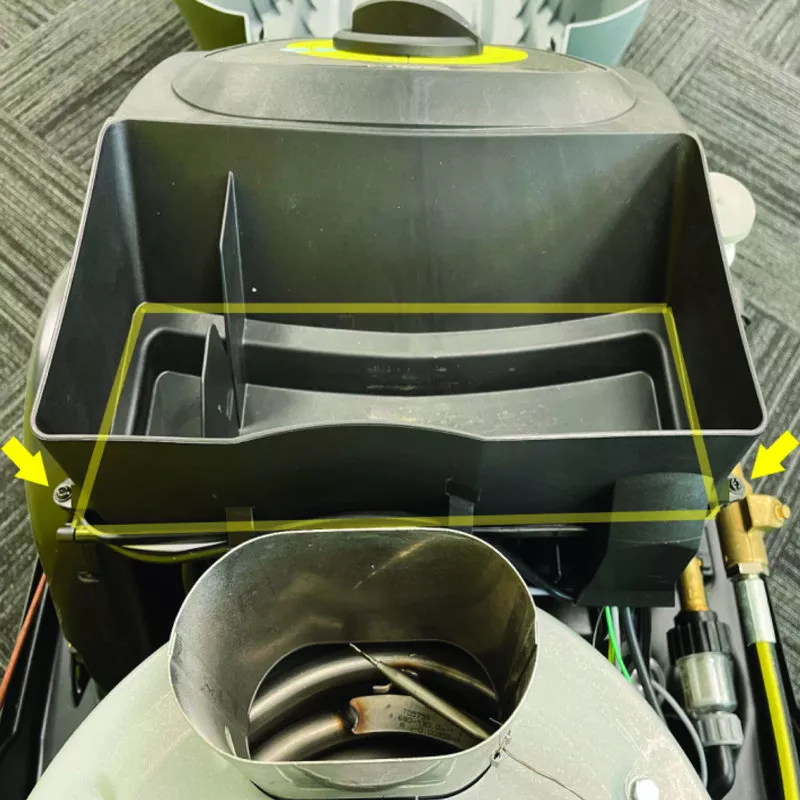

Water hardness testing & machine protector setting - see below photos for how to locate the RM dial
Recap on water sample:
o Thoroughly wash & rinse container
o Run tap for 30-60 seconds
o Fill container & seal
o Provide sample to Sydney Tools Handover Team
o Water testing strips (0.016-689.0) to be provided by Kärcher sales team to stores

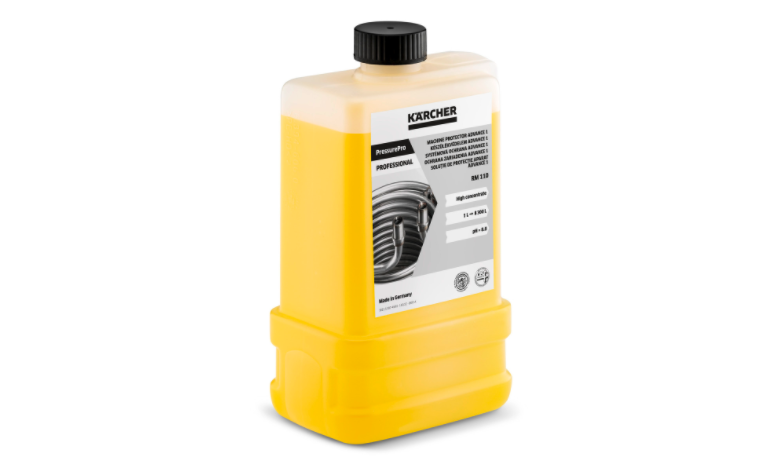

Kärcher Machine Protector part numbers as below:
Sydney Tools Part #'s:
RM110 1L - W189815
*Warning - failure to complete this correctly may void warranty – Refer warranty conditions here: https://www.kaercher.com/au/warranty/commercial-warranty-terms.html

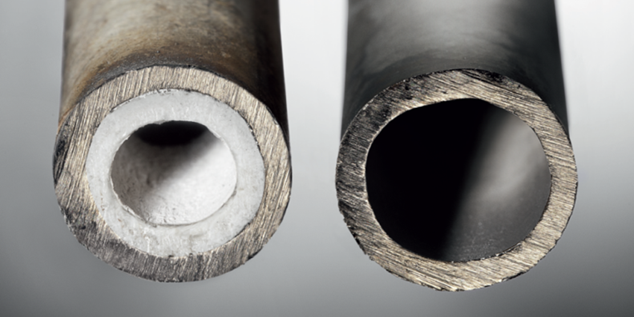

Below you can see a blocked heating coil vs. a heating coil that has been using the correct Machine Protector dosage:
