High-pressure cleaner HD 8/12-4 MX Food
High-pressure cleaner for the food industry: 800 l/h, 120 bar, hose reel with 15 m of hose, integrated pressure control on the trigger gun and a foam lance.
The HD 8/12-4 MX Food cold water high-pressure cleaner is designed for commercial use in the Food industry. With a flow rate of 800 l/h and an operating pressure of 120 bar, the machine operates at a permitted water inlet temperature of up to 80 °C, which helps to break down residues containing fat and protein. The working pressure can be adjusted directly on the high-pressure gun using a rotary control. A manual hose reel with 15 metres of food-grade high-pressure hose extends the operating range. The scope of delivery includes a high-pressure gun, a cup foam lance for dispensing detergents, an 840-mm stainless steel jet pipe and a power nozzle.
Features and benefits

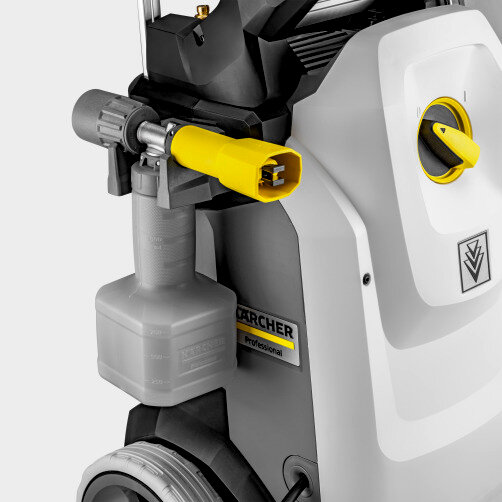

Hygiene requirements
The built-in hose reel, featuring 15 metres of food-grade high-pressure hose, allows for a wide operating radius. Water inlet temperature up to 80°C. Easy-care appliance cover (white): smooth, hard-wearing surface for easy cleaning in hygiene-sensitive areas. The built-in water filter with a stainless steel mesh protects the brass pump from dirt particles. The filter can be removed and rinsed for easy cleaning.
Hygiene requirements

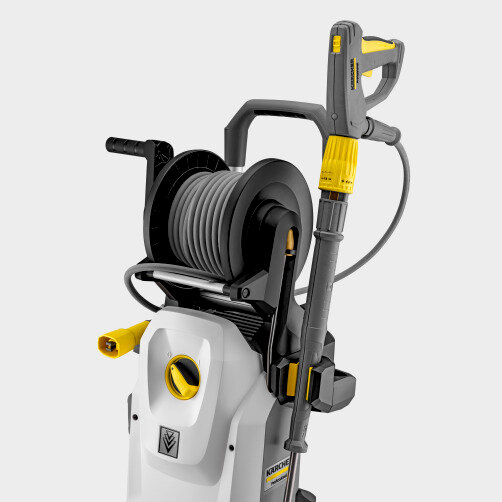

Servo Control
Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun. For gentle cleaning of sensitive surfaces. Pressure and water flow can be adjusted at the gun.High-quality accessories included
- Fatigue-free EASY!Force high-pressure gun.
- 840-mm-long stainless steel lance.
- Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
- Patented power nozzle with up to 40 percent stronger cleaning action compared with conventional nozzles.
- Cup foam lance for effortlessly applying detergent
- Stainless steel spray lance.
High-quality accessories included
High-quality equipment
- 4-pole, slow-running electric motor guarantees a long working time.
- High-quality brass cylinder head
- 4-pole electric motor with 3-piston axial pump.
Practical detergent system
- Cup foam lance for effortlessly applying detergent
- For optimal foam quality.
- Better foam formation reduces the need for cleaning agents.
Outstanding mobility
- The push handle, which can be retracted at the touch of a button, increases the compactness of the machine and reduces the spatial requirement.
- The integrated storage ensures all accessories are stowed in such a way that they cannot get lost and are always ready to hand.
- The hose reel offers high comfort and reduced set-up time.
Very easy servicing
- Easy access to the cylinder head through the open part at the bottom of the machine.
- Quick access to the electrical box by simple removal of the machine cover.
- Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.
Practical accessory storage
- Holder for the cup foam lance.
- Practical nozzle compartment for storing the rotary nozzle.
- Storage possibilities for all accessory parts directly on the machine.
Specifications
Technical data
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 800 |
| Inlet temperature (°C) | 80 |
| Working pressure (bar) | 120 |
| Max. pressure (bar) | 180 |
| Connected load (A) | 16 |
| Power cable (m) | 5 |
| Nozzle size | 055 |
| Water inlet | 3/4″ |
| Colour | White |
| Weight (with accessories) (kg) | 42,1 |
| Weight incl. packaging (kg) | 46,2 |
| Dimensions (L × W × H) (mm) | 400 x 455 x 966 |
Scope of supply
- Spray gun: EASY!Force
- High-pressure hose length: 15 m
- High-pressure hose type: Food design
- High-pressure hose specification: DN 6, 250 bar
- Stainless steel spray lance: 840 mm
- Power nozzle
- High-pressure hose: 15 m
- Servo Control
- Foam lance
Equipment
- Integrated high-pressure hose reel
- Pressure cut-off
- Infinitely variable pressure and water flow regulation
Application areas
- Ideal for cleaning applications in the food industry
- Ideal for use in the hotel sector, catering establishments, retail and building cleaning
- For cleaning in restaurants, canteens or retail
- Restaurants and catering
- Healthcare
- Suitable for the food processing industry, such as the meat and sausage, dairy, bakery, confectionery and beverage industries
- Suitable for commercial kitchens: for the hygienic cleaning of floors, walls and work surfaces
- For hotel and canteen kitchens: reliable cleaning of all kitchen areas
- Suitable for the drinks industry: cleaning solutions for bottling lines and conveyor belts
- Suitable for food processing
