Vacuum sweeper KM 105/180 R Bp Pack Li+FC

The KM 105/180 R Classic Bp Pack industrial sweeper, featuring a lithium-ion battery and fully hydraulic drives, combines robustness with powerful sweeping performance and offers great versatility.

Full rubber wheels and fully hydraulic drive systems for the chassis, sweeping rollers and side brushes ensure maximum reliability for our KM 105/180 R Bp Pack Classic industrial sweeper. The 300 Ah lithium-ion battery delivers enough energy for 4 hours of varied cleaning tasks. If this is not enough, the battery can be topped up at any time. Equipped with a high-performance pocket filter system complemented by effective, automatic filter cleaning, the machine effortlessly deals with even extremely dusty conditions. It also comes with an optional, user-friendly flat pleated filter system or a reliable round filter system. Furthermore, the KM 105/180 R Bp Classic Pack can also handle coarse dirt, and is also highly effective in heavily furnished indoor areas thanks to its compact design. It is intuitive and very easy for the user to operate thanks to its lever system, convenient high container emptying and simple maintenance concept. Lithium-ion battery and fast charger are included in the scope of supply.

Features and benefits

Robust design of the machine for safe work

Fully hydraulic traction drive, main sweeper roller and side brush drive. Leads to longer service life of components and machine. Standard flashing beacon increases safety for user and environment.

Dustpan principle

Guarantees good cleaning results also with fine waste. Effortless pick-up of coarse waste. Low dust production.

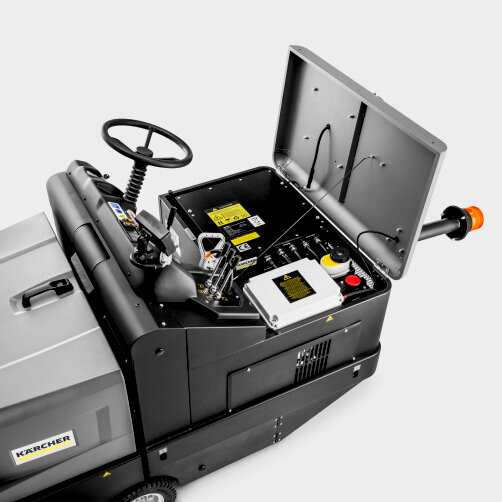

Includes a high-performance lithium-ion battery

High number of charging cycles possible for a longer battery life and service life. Long life of the filter reduces maintenance costs.

Simple operation, maintenance and servicing

Intuitive operation using levers.
Main sweeper roller and filter can be replaced easily without tools.
Easy access to all key components.

High performance pocket filtration system with 13 m² filter area

Effectively minimises dust production when sweeping.
Also available with optional flat pleated filter or round filter system.
Extremely effective cleaning for a long service life.

Automatic filter cleaning

Regular cleaning extends the service life of the filter.
Reduces dust production, even in extreme external conditions.
Functions reliably with all available filter systems.

Specifications

Technical data

Drive type	Electric
Traction drive	DC motor
Drive – Power (V/kW)	36 / 2,5
Max. area performance (m²/h)	6300
Working width (mm)	780
Working width with 1 side brush (mm)	1050
Working width with 2 side brushes (mm)	1300
Battery capacity (Ah)	300
Battery voltage (V)	38,4
Battery run time (h)	4
Waste container (l)	180
Climbing ability (%)	14
Working speed (km/h)	6
Filter area (m²)	5,2
Weight (with accessories) (kg)	530
Weight, ready for operation (kg)	750
Weight incl. packaging (kg)	530
Dimensions (L × W × H) (mm)	1847 x 1065 x 1388
