High-pressure cleaner HD 8/18-4 St H steel
Stationary high-pressure machine with a robust steel frame and hard-wearing steel cover. High-performance with a flow rate of 800 l/h and pressure of 180 bar, featuring high-quality components and offering exceptional operational safety.
Robust, powerful and user-friendly: this stationary cold water high-pressure cleaner with an advance pressure pump is designed for continuous use and is suitable for inlet temperatures of up to 85 °C. With a flow rate of 800 l/h and an operating pressure of 180 bar, it delivers high cleaning performance. An integrated water storage tank with descaling and dry-running protection, including a low-water indicator, ensures additional operational safety. In addition, the machine is equipped with a detergent inlet featuring a dosing valve and a low-level indicator. The robust crankshaft pump with a brass cylinder head, together with the sturdy steel frame and housing, ensures a long life. A 4-pole, low-speed electric motor supports minimal downtime, whilst electronic monitoring ensures safe operation. Thanks to the large rotary switch, operation is convenient, and installation and maintenance are designed to be simple and user-friendly. The machine is supplied without accessories. Optional extras: pressure gauge, hour meter, an inlet for a second detergent, automatic pressure relief and various remote controls.
Features and benefits

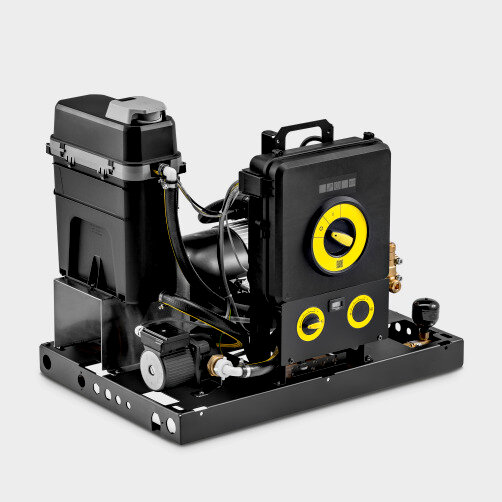

High-quality equipment
Storage tank with valve, limescale protection and dry-running protection. Robust frame and cover made of powder-coated steel. Advance pressure pump for inlet temperatures of up to 85°C.

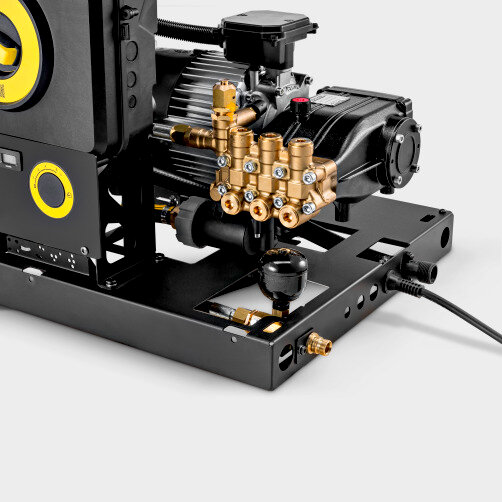

Durable and robust
4-pole, slow-running electric motor guarantees a long working time. Robust crankshaft pump with brass cylinder head and high-quality materials ensure a long service life. Reliable and durable Kärcher high-performance crankshaft pump ensures optimal pressure.
Easy operation
Simple operation per rotary switch. LEDs indicate important operating states The machine can alternatively be controlled with a remote control.Electronic monitoring for greater operational safety.
- Automatic shutoff in event of low voltage range or overvoltage.
- Automatic switch-off in the event of leaks or phase failure.
- Switch off in the event of water shortage, LEDs: standby, service, error.
Robust design also allows for heavy-duty applications
- Designed for daily use.
- Longer service life, less maintenance effort and lower costs. Ideal for industrial use.
- Long-lasting, robust and thus very economical machine.
Simple maintenance and very easy servicing
- Good accessibility for easy service and maintenance.
- Less downtime and longer productivity thanks to faster routine maintenance and repairs.
- Comprehensive service network with highly trained service technicians.
Is ready for use quickly at any time
- Remote controls can be used directly at the point of use.
- Ready at the push of a button, with no set-up times or transporting mobile machines.
- The pump starts as soon as the trigger gun is activated, allowing convenient working from any supply point.
Extensive range of accessories and attachment kits
- Pre-wired for remote control connection, can control up to 6 extraction points.
- A time counter and pressure gauge as well as automatic pressure relief to protect accessories and pipelines are available as options.
- Suitable accessories for every work site and every application can be individually selected from the Kärcher high-pressure range.
Large integrated water filter
- Protects high-pressure pump from dirt ingress.
- Easy to use, easy to clean
- Ensures long service life for all high-pressure components.
Specifications
Technical data
| Number of current phases (Ph) | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Flow rate (l/h) | 500 - 800 |
| Working pressure (bar) | 50 - 180 |
| Max. pressure (bar) | 240 |
| Inlet temperature (°C) | 85 |
| Connected load (kW) | 5,5 |
| Protection (A) | 16 |
| Power cable (m) | 5 |
| Water inlet | 1″ |
| Number of users | 1 |
| Portability | stationary |
| Weight (with accessories) (kg) | 75 |
| Weight incl. packaging (kg) | 84,8 |
| Dimensions (L × W × H) (mm) | 1005 x 700 x 1041 |
Scope of supply
- Servo Control
- Power nozzle
- Frame and cover: Steel, powder-coated
- Pre-equipped for a detergent inlet
Equipment
- Crankshaft pump with ceramic pistons
- Advance pressure pump
- Calcification protection
- Dry-running protection
- Large water fine filter
- Storage tank with float valve
- Prepared for remote operation
- RM1 dosage
- Sight glass for oil level
- Oil dipstick
- Air-cooled motor
Application areas
- Ideal for cleaning in industrial environments, for example for cleaning production facilities
- High-pressure cleaning of machines and equipment in the construction, agricultural and municipal sectors
- For cleaning machines and vehicles
- Cleaning of stables, milking parlours, agricultural machinery and vehicles in agriculture
- Ideal for applications in the food and chemicals industries
- Ideal for diverse applications in the transport and logistics sector
- Vehicle and machine cleaning in the automotive, industrial and agricultural sectors
- Vehicle fleets and transport companies: in wash halls and depots where trucks, buses or other commercial vehicles need to be cleaned regularly
- For cleaning in workshops, garages, building yards, vehicle fleets in municipal facilities
- Industry
