Industrial vacuums IVM 40/24-2 H

Two-motor, mobile mid-class industrial vacuum cleaner IVM 40/24-2 H for fine and coarse dirt. Includes dust class H certification.

Compact and mobile: our two-motor mid-class industrial vacuum cleaner IVM 40/24-2 H for universal vacuuming of fine and coarse solids. The device operates in single-phase operation, with each of the two motors being individually controllable. The large dust class M star filter can be cleaned during operation using the Pull and Clean filter cleaning system. In addition, the device is equipped with a certified H-filter and certified to dust class H. The filter and collection containers are made of acid-resistant stainless steel, while the chassis is made of steel and features large wheels for transport.

Features and benefits

Dust class H

Overall device certified according to DIN EN 60335-2-69 for dust class H. For safely picking up solids and dusts up to dust class H.

Manual pull-and-clean filter cleaning

Filter is cleaned in a single step during operation. Low-wear dedusting by means of air reversal.

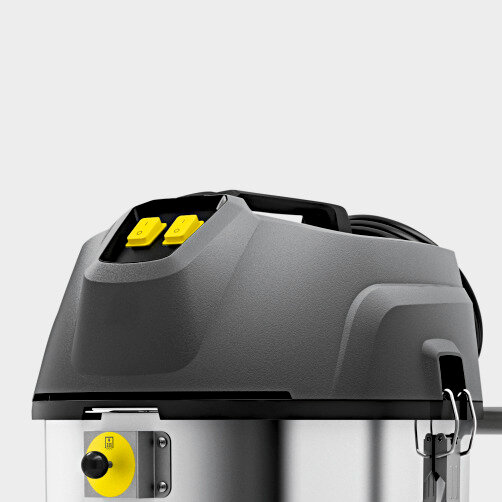

Fitted with two blower motors

For powerful suction power and optimum cleaning performance. Fans can be switched on separately for individual suction power as required.

Features extra-large star filter and additional cartridge filter

For safely picking up solids and dusts up to dust class H.
Maximum safety thanks to 2-stage filter system with optimum separation degree.

Minimum space requirement

Steel chassis with large steering castors for mobile, industrial use.
Minimal storage space due to narrow chassis.

Specifications

Technical data

Number of current phases (Ph)	1
Voltage (V)	220 - 240
Frequency (Hz)	50 - 60
Air flow (l/s/m³/h)	100 / 360
Vacuum (mbar)	225
Container capacity (l)	40
Container material	Stainless steel
Rated input power (kW)	2,3
Vacuuming type	Electric
Connection nominal diameter	DN 70
Accessory nominal diameter	DN 50
Sound pressure level (dB(A))	77
Main filter dust class	M
Filter area for main filter (m²)	1,6
Secondary filter dust class	H
Filter area for secondary filter (m²)	1,6
Weight without accessories (kg)	39,8
Weight incl. packaging (kg)	40,4
Dimensions (L × W × H) (mm)	645 x 655 x 1150
